Erikson Commercial: Solid Drive - Sound Without Speakers

Turning solid surfaces into speakers

Induction Dynamics® SolidDrive® is a powerful hidden sound transducer that transmits acoustical energy through almost any solid surface. The entire surface becomes a speaker delivering high-quality sound with the frequency response of conventional diaphragm speakers. SolidDrive provides a distinct advance for audio systems used in home theater systems, distributed audio, and other high-performance audio applications. SolidDrive works with rigid surfaces that include glass, drywall, granite, metal, wood, ceramics, laminates and composites. Because the SolidDrive utilizes materials already existing in a room, it is ideal for installed home audio, commercial audio, home theater surround systems, or anywhere an invisible sound source is desired.

WHAT'S NEW

DS1

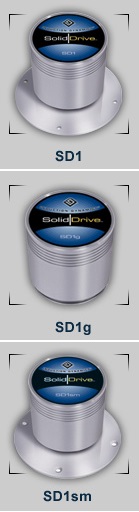

SD1 - Drywall Full-Range Transducer

The SD1 mounts "in-wall" and "in-ceiling" by attaching directly to the drywall with a patented balanced cantilever spring bracket. The bracket spans the studs, providing strength, stability and vibration-free operation. Available in a chrome or titanium finish.

SD1g - Glass Full-Range Transducer

For use vertically or horizontally on glass or other smooth, non-porous materials. The SD1g is attached with a double-sided adhesive disc. The SolidDrive SD1g provides excellent performance on windows, acrylic and granite sheets, and nearly any other rigid non-porous surface. Available in a chrome, black or titanium finish.

SD1sm - Surface-Mount Full-Range Transducer

For use mounted to wood and other porous surfaces. The SolidDrive SD1sm mounts to the surface by utilizing 4 screws to securely attach the SolidDrive underneath wood desks, tables, cabinets, paneling, and even under hardwood floors. The SD1sm includes (1) SolidDrive SD1sm and plenum rated wiring with Eurostyle connector. Available in a chrome, black, or titanium finish.

[More Info]

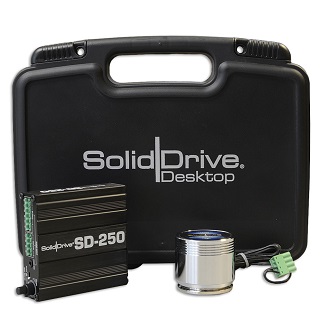

SD1 Desktop Kit 250 - Portable Solid Drive Demo Kit

For use on top of any horizontal surfaces including glass, granite, metal, wood, ceramics, laminates, and composites. Special silicone rubber pad "grips" any nonporous surface. Available in a chrome finish. The SD1 Desktop Kit 250 is ideal for testing how a SolidDrive will sound on any horizontal or vertical surface prior to permanent installation.

Kit includes: one (1) SolidDrive SD1 Desktop, DC power adapter, SD-250 mini-amp with built-in EQ curves, cables, carrying case, and instructions.

[More Info]

SD-250 - 2 x 50W Amplifier

34 dB maximum gain with 2 x 50 watt output. Three operating modes: stereo, mono or bridged mono. Three SolidDrive EQ settings for drywall, wood and glass, plus a full-range flat option (no EQ). Three user selectable inputs: balanced stereo euroblock, stereo unbalanced mini jack, or high level euroblock.

External 12-32 V trigger. Signal detecting auto standby to conserve energy. Dual concentric gain controls for independent channel control. 20 Hz- 20 kHz frequency response. Rugged aluminum housing.

Small size: 1.2″ x 3.9″ x 4″

Optional Accessories: rack mount adapter kit (AC-SD-250-RMA)

[More Info]
